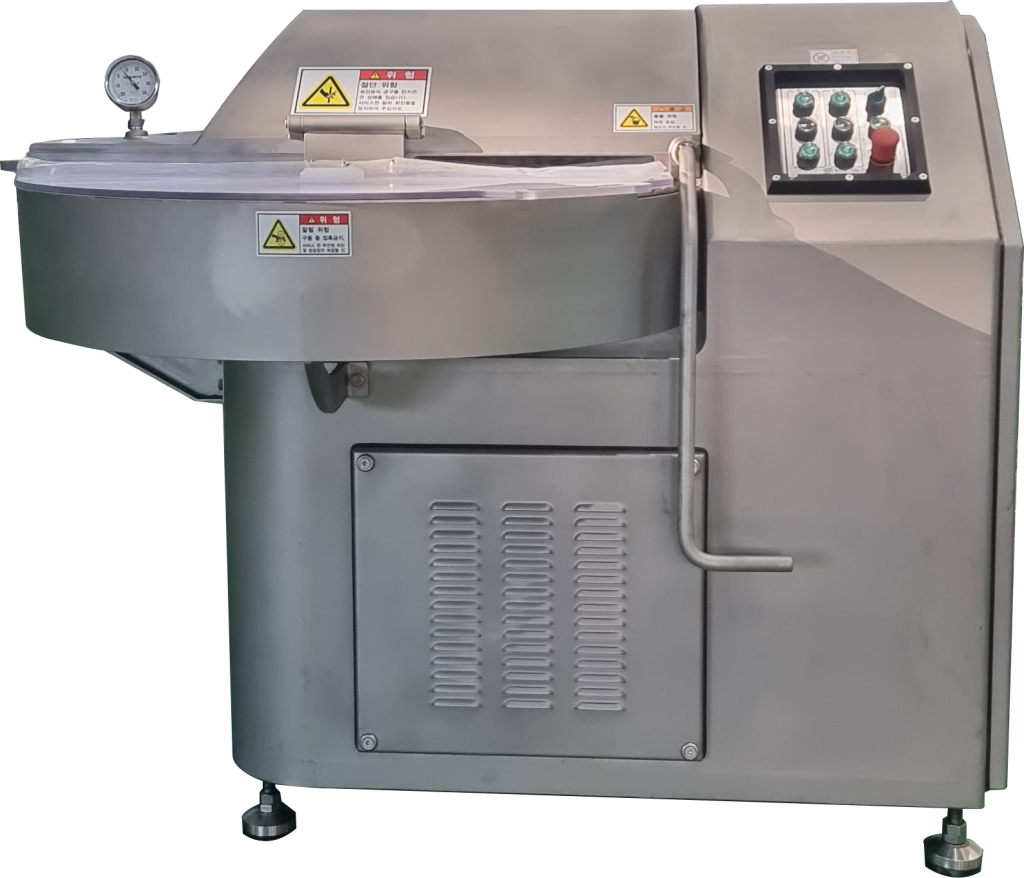

Standard Sized
Bowl Cutter
Feature
- Thanks to knives, DSC Series cut and emulsify the product equally
- 2 types of knife rotation speed & bow rotation speed
- Loading option : manually
Technical Specification
| Model | DSC-40 | DSC-60 |
|---|---|---|
|
Capacity |
20-25 (L/Batch) |
30-36 (L/batch) |
|
Knives Qty' |
4 |
4 or 6 |
|
Rotation Speed of Knives |
900 / 1800RPM |
900/1800RPM |
|
Rotation Speed of Bowl |
5,10 RPM |
5, 10RPM |
|
PWR |
3.75Kw |
5.5Kw |
|
Dimension |
W900 X L1200 X H1051 |
W1109 X L1400 X H1200 |

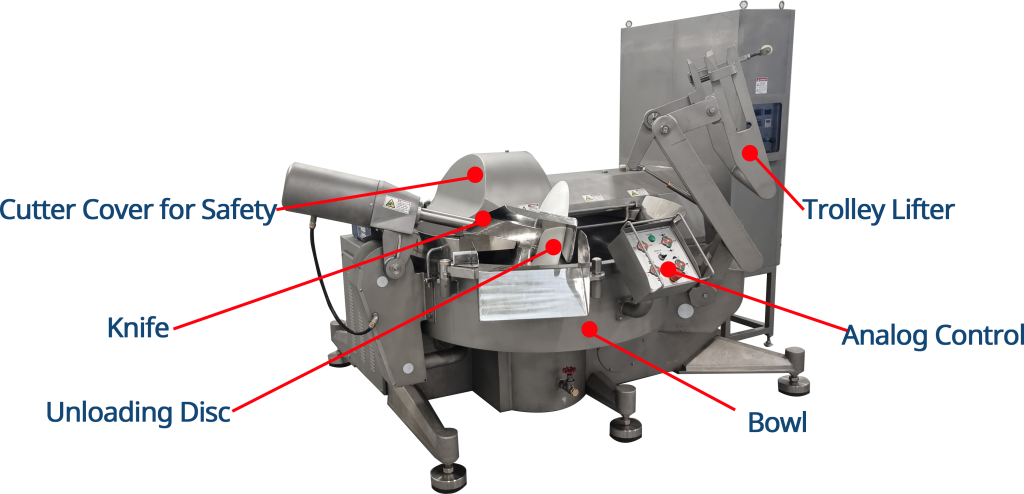

Industrial
Bowl Cutter
Feature
- Thanks to 6 knives, DSC Series cut and emulsify the product equally
- 2 types of knife rotation speed & bow rotation speed
- Included Unloading disc
- Included Scraper(370L only)
- Included automatically lifter for Euro bin 200L
- Loading option : manually
Technical Specification
| Model | DSC-100 | DSC-200 | DSC-370 |
|---|---|---|---|
|
Capacity (L/Batch) |
50-60 |
100-120 |
200-220 |
|
Knives Qty' |
6 |
6 |
6 or 8 |
|
Rotation Speed of Knives |
700, 1400RPM |
700, 1400RPM |
700, 1400RPM |
|
Rotation Speed of Bowl |
5,10 RPM |
5,10 RPM |
5,10 RPM |
|
PWR |
25.3Kw |
35Kw |
53.5Kw |
|
Dimension |
W1325 X L1950 X H1015 |
W2479 X L2930 X H1720 |
W2560 X L3600 X H1720 |
Comparable Machine

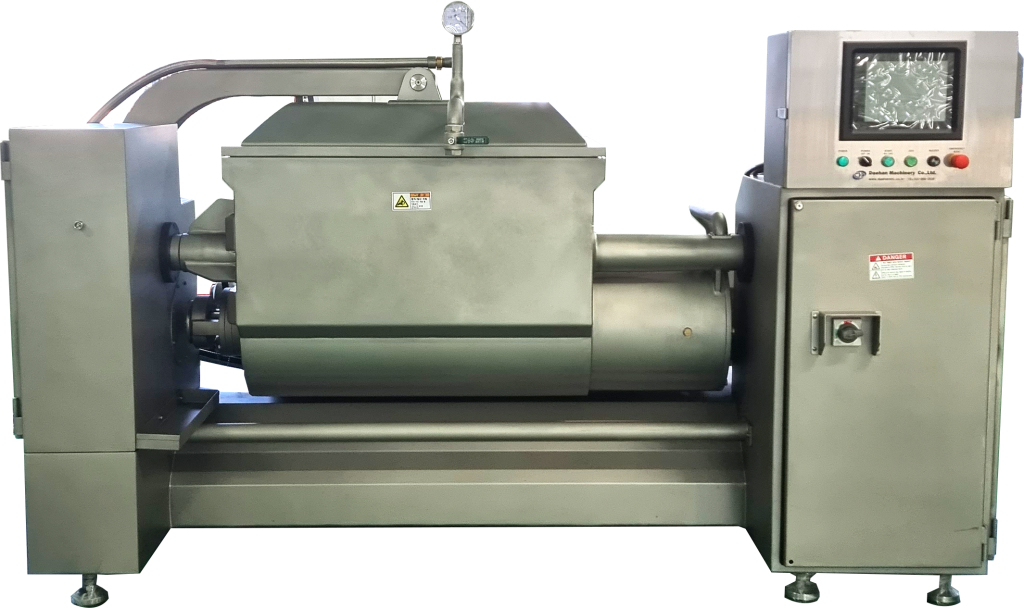

Mixer
- Double axis homogeneously mixes different ingredients
- Water-resistant design
- Pneumatically discharge tilting for easily transferring filling to wagon or mono-pump
