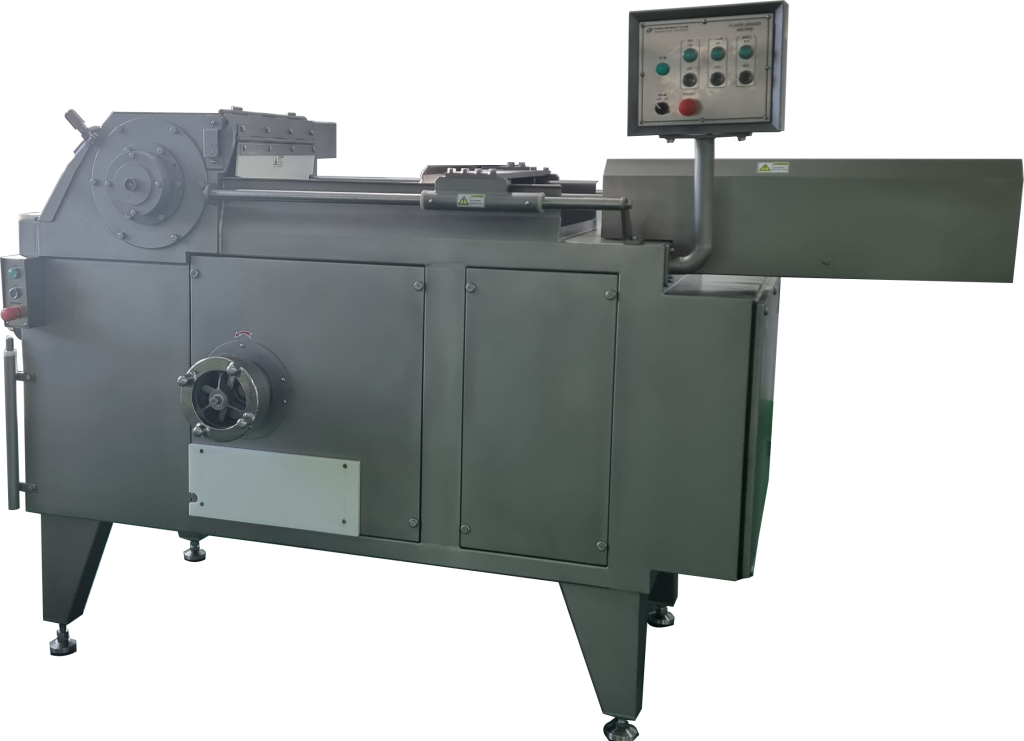

Flake & Grinder
Feature
- Combined with Flaker and grinder
- Perfect quality when flaked with up to -2 °C
- Option : 2 type of speed of worm for fresh meat & frozen meat
Technical Specification
| Model | DFG-450 | DFG-450S |
|---|---|---|
|
MEAT TYPE |
FROZEN ONLY |
FROZEN & FRESH |
|
Capacity |
800 - 1200Kg/H |
800 - 1200Kg/H |
|
Power |
26Kw |
28Kw |
|
Dimension |
W1290 X L2565 X H1250 |
W1250 X L3100 X H1750 |

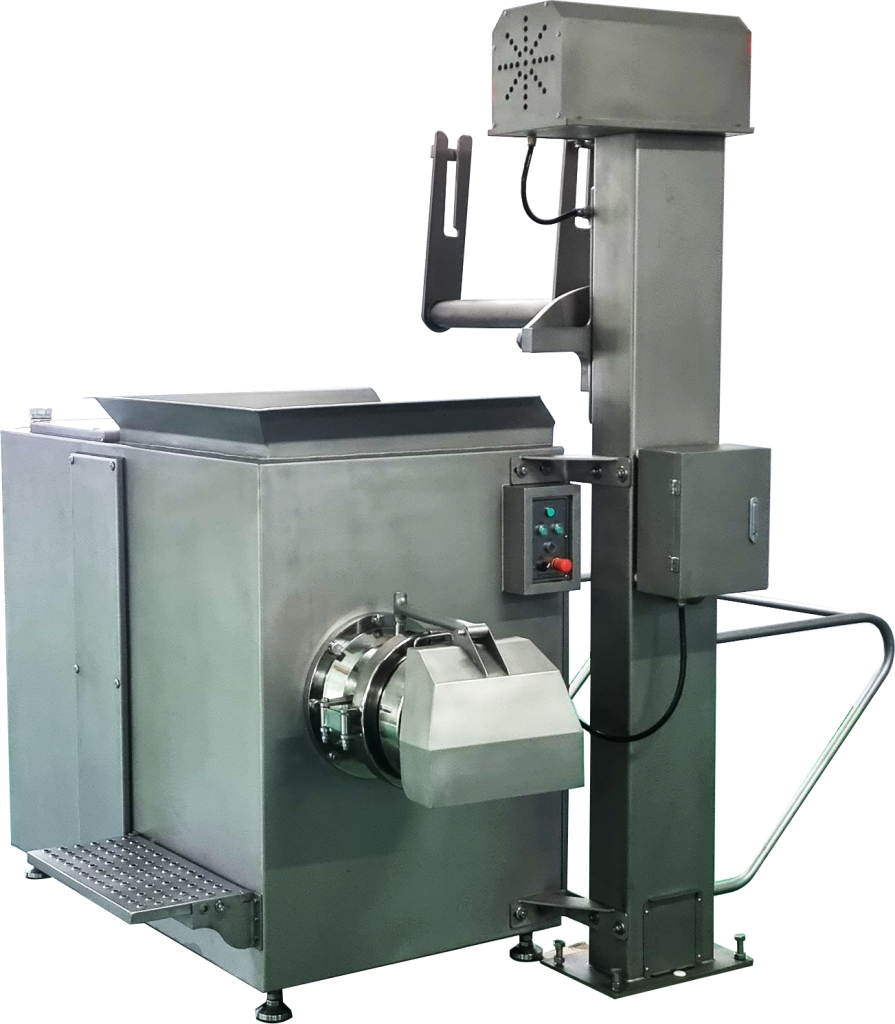

Frozen Block Grinder
Feature
- Guarantee perfect quality when chopping frozen block up to -15 °C
- 75 Horse powered motor
- Included lifter
Technical Specification
| Model | DFG-300 |
|---|---|
|
Hole plate |
300Pi |
|
Power |
55Kw (75Hp) |
|
Dimension |
W1100 X L2330 X H1486 |

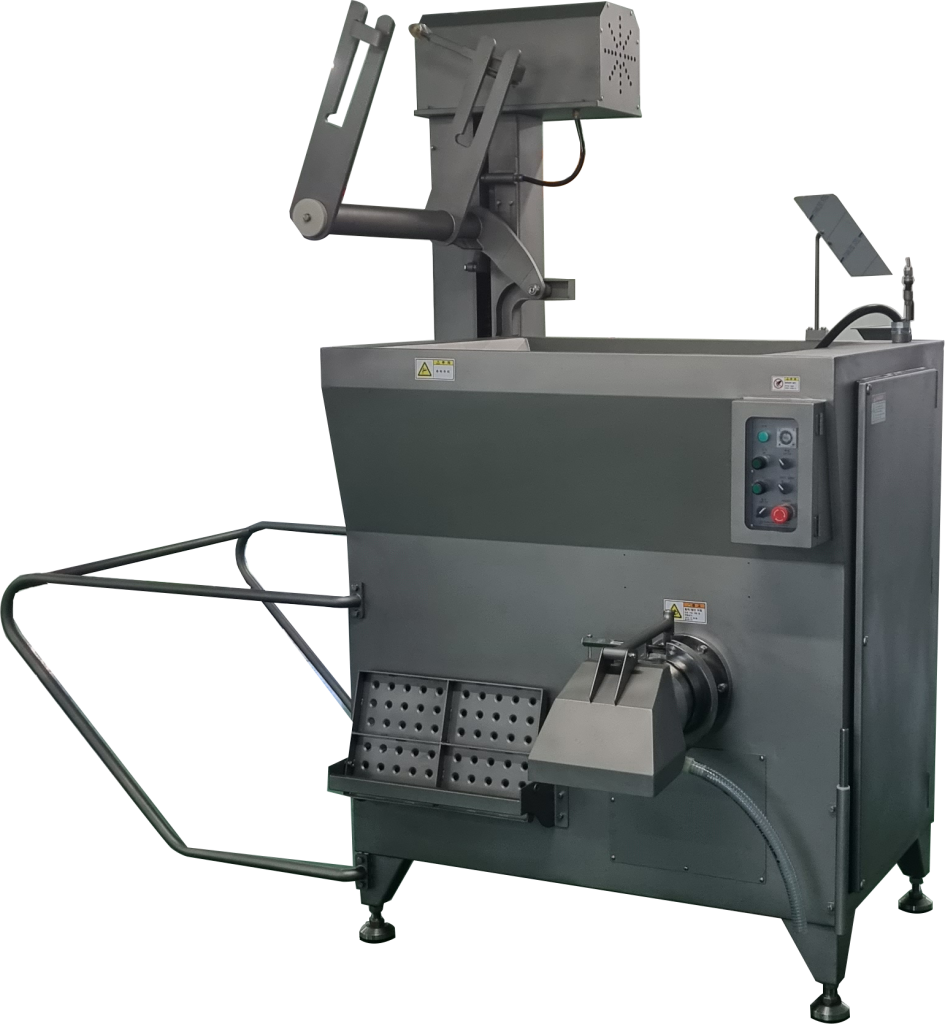

Fresh & Frozen Grinder
Feature
- Adaptable for flakered frozen meat & fresh meat up to -15 °C
- 2 type of speed of worm for fresh meat & frozen meat
- Pneumatically driven Seperating system

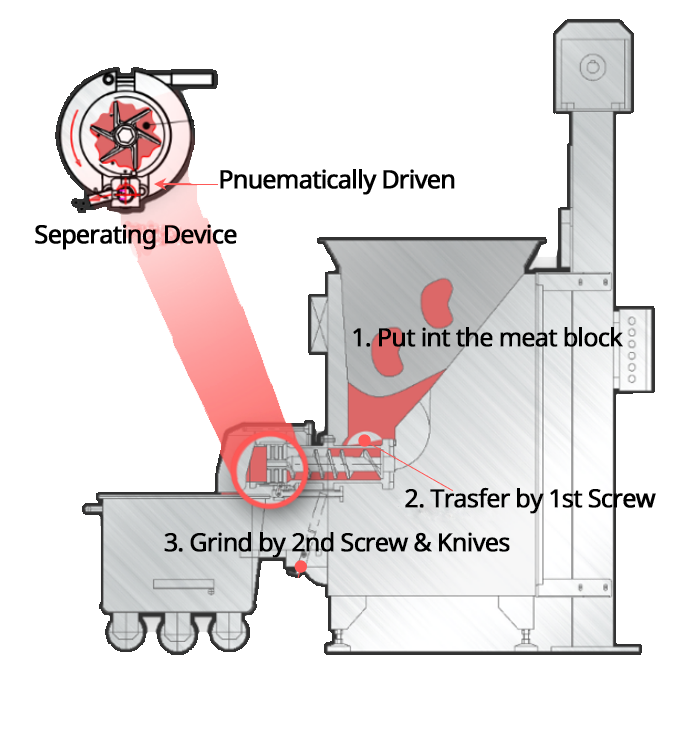

Process
Technical Specification
| Model | DCP-114F | DCP-170F | DCP-200F |
|---|---|---|---|
|
Hole Plate |
114pi |
170pi |
200pi |
|
Rotation Speed |
280RPM |
280RPM |
280RPM |
|
PWR |
8.3Kw |
33.8Kw |
58.5Kw |
|
Dimension |
W1134X1019LXH1230 |
W1414XL1770XH1800 |
W1886XL1770XH1800 |
Comparable Machine
Mixer
- Double axis homogeneously mixes different ingredients
- Water-resistant design
- Pneumatically discharge tilting for easily transferring filling to wagon or mono-pump
